Low Frequency Pure sine wave InverterBZP-8000W battery energy storage system solar inverter

BZP-8000W battery energy storage system solar inverter

Bangzhao pure sine wave series inverter is one of the most advanced DC to AC conversion products in the world, it has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, and it is simple, stable, no noise and no pollution. It is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine etc. The inverter can also supply AC voltage to all kinds of power tools, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other power supply.

The inverter output waveform is pure sine wave; this kind of AC power is suitable for most industrial electronics and home appliances, the power supply features much better than other modified sine wave and square wave.

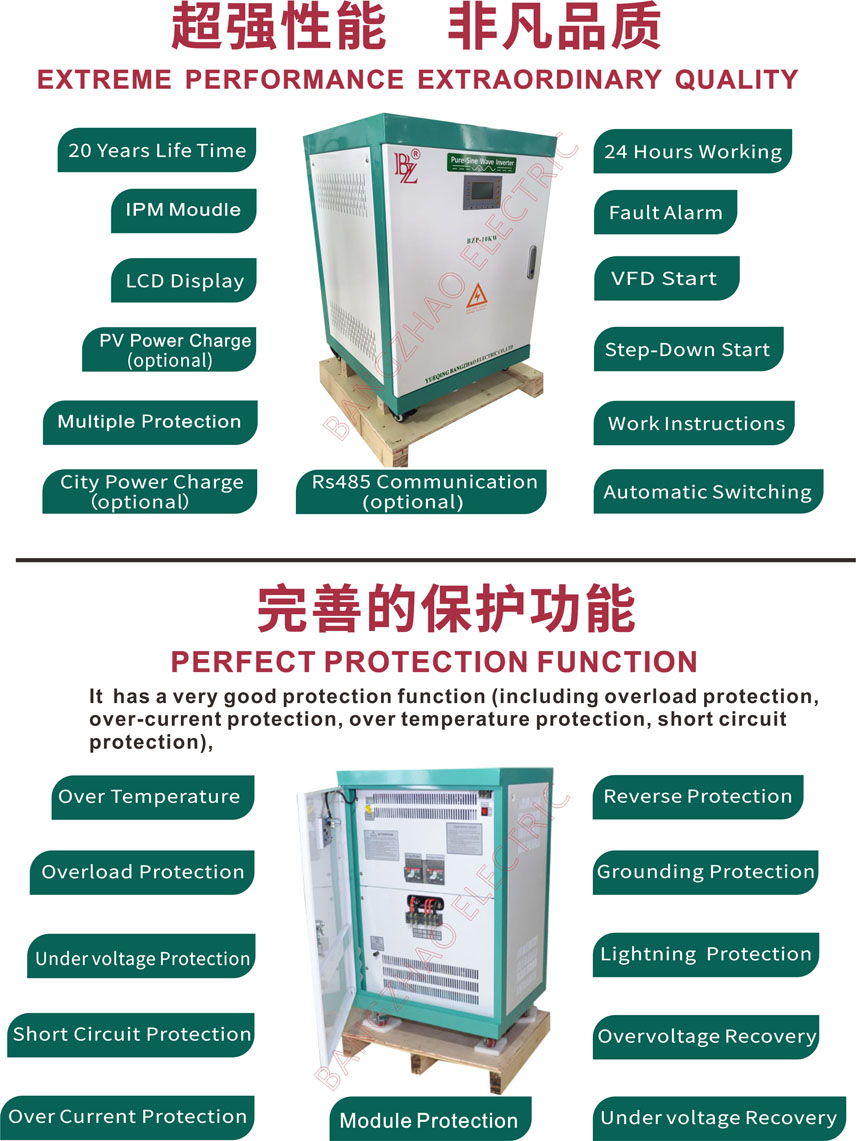

Technical Features:

1, Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the nature of their load.

2, The output frequency can be set, this function is very convenient for customer.

3, The output voltage can be set between +20 % to -40 % of rated voltage. It’s a great convenience to users.

4, The DC input voltage range can also be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be set via the LCD panel. Convenient for increasing or reducing the quantity of batteries, photovoltaic modules also can be used flexibly.

5, Pure sine wave output. with good transient response less than 40MS, little harmonic distortion, higher conversion efficiency and stable output voltage.

6, Powerful data display and fault instruction function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.

7, Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.

8, Wide input voltage can be set according to customer’s requirement. Input voltage range can be selected from 200-500V or 400-850V.

9, Product have passed the European CE (EMC and LVD) certificated and accredited by Australia CEC energy network.


Technical Data(Below parameter only for reference,Could be custom made to user specifications.)

Model

BZP-8KW

Isolation mode

Low Frequency Transformer

DC Input

Rated voltage (Vdc)

120V

192V

Rated current(A)

67A

42A

AC Output

Rated output power

8KW

Output waveform

Pure Sine Wave

Rated Voltage

220V±3%

380VAC±3%

Phases

Single phase

3 phase 4 wire

Rated current(A)

36A

12A (phase current)

Frequency

50Hz or 60Hz

Rated output voltage range (V)

110/120/220/230/240/380/400/415VAC optional

Power Factor(PF)

0.9

Overload Ability

150%, 5 seconds

Efficiency

>93%

Waveform distortion rate (THD)

Dynamic Response (0 to 100% load)

5%,≤50ms

Display

LCD

Running mode

Working continuously

Electrical insulation properties

2000Vac, 1 Minute

Protection Function

Protection

Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.

Cooling method

Fan-cooled

Short-circuit protection

No automatic recovery, need to restart the machine

Working environment

Noise ( 1 meter)

≤50dB

Degree of protection

IP20(indoor)

Working Altitude(m)

≤2000

Working temperature

-25~+55℃

relative humidity

0~90%,non-condensing

Mechanical dimension

Depth* Width * Height

550x550x860mm

Weight (Kg)

135Kg
